Rectiverter Power Core 6kVA 1ph MB

Product Categories
Beijing Guoguang Xingda Technology Co.,ltd
Contact Now

Rectiverter Power Core 6kVA 1ph MB

Brand Name : Eltek

Model Number : CIOR0405.1xxx

Certification : CE SGS UL 60950-1

Place of Origin : China

MOQ : 10

Price : USD1900-3700

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets/month

Delivery Time : 1 week * depends on quantity

Packaging Details : Original Packed by Carton

MODEL : 8 KW / 4 KW

Part number : CIOR0405.1xxx

Input Voltage range AC (3 phase Y) : 185-275 / 95-140 V

Voltage range DC : 90-145 V

Maximum current AC (per phase) : 28-48 A

Frequency : 47-53/57-63Hz

Power factor : > 0.99

Contact Now

Rectiverter Power Core 6kVA 1ph MB

  • The total output power for both AC and DC output is limited to max 8kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW.
  • The Rectiverter power core combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 VAC or 115 VAC loads, and 110 VDC power for DC loads and battery charging.
  • The total output power for both AC and DC output is limited to max 8 kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6 kVA and for DC load to max 4,8 kW

Key features

  • 230 or 115 Vac input/output
  • Single phase input/output
  • 110 Vdc input/output
  • 8kW total AC + DC output
  • Max 6kVA AC output
  • Max 4,8kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • Built in manual bypass switch
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller

Rectiverter Power Core 6kVA 1ph MB


China Rectiverter Power Core 6kVA 1ph MB wholesale

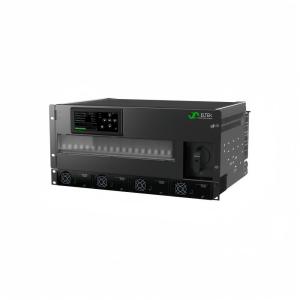

Rectiverter Power Core 6kVA 1ph MB Images
